KC Supply's Grain Rescue Tube
KC Supply’s rugged aluminum grain rescue tube is designed to prevent a trapped worker from becoming another statistic. Each tube’s sections acts as a shield so that the grain (which is pressing against the victim) can be removed. Once the grain level is reduced, the victim can be extricated.
Two Models Available
Four-Section or Six-Section
Brochure Download (PDF)
- Extensively tested design
- Used by numerous training companies and fire depts.
- Relatively small storage area needed
- Approx overall dimensions 28" ID x 37" OD x 60" Tall
- Opening Requirements
| Sections | Round | Square |
|---|---|---|
| 4-piece | 24" | 18" |
| 6-piece | 17" | 13" |
- Top-rated design for ease of use
- Designed for repeated usage as well as frequent training
- Insert sections without need for extra tools or hammer (which can be lost or cause injury)
- Use any combination of sections (one, two or all) - helpful if victim is trapped against equipment thus preventing a full enclosure
- Maintain contact with victim at all times
- No lifting overhead requiring more room
- Rigid and not prone to warp
- Sections not designed to flex or fold over
- Powder-coated safety yellow
- Durable, lightweight aluminum with total weight less than 120 lbs
Large V-Groove
Quickly connects sections without lifting overhead.
Clamps
Two per section
(3) Internal Handles
- Used by victim as hand holds, and reduces stress
- Several locations - use as ladder steps to climb out
- Allows first responders to perform first aid
- Tie-off points
(3) External Handles
- Carrying handles
- Foot peg drives section into grain
- Stand allows rescuers to provide aid while maintaining contact with victim
Optional Items
Carrying Bag
- Durable, waterproof
- Four handles for ease of carrying / lifting

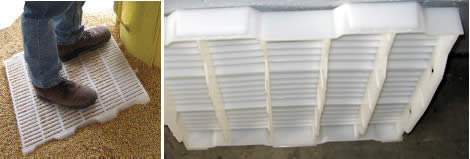

18x18 Poly Platforms
- Durable grids
- 2 inch deep gripping ribs
- Provides more stable footing
- Can be used with any style of rescue tube
Training Class
Kits
- Rescue Kit
- Bin Entry Kit
- Harness Available
